A general purpose 1-into-2 video/audio distribution amplifier for installation use. The compact ABS case has mounting flanges and block diagram on the cover. Designed with economy in mind, this is possibly the lowest cost VADA on the market, but employs the same high integrity circuitry as our mainline products to ensure superb signal reproduction. Unity gain (terminated).

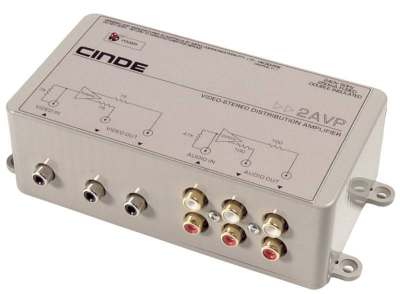

Image: Perspective View (37K jpg)

Video Bandwidth DC - 25MHz
Audio Bandwidth 10Hz - 22KHz
Distortion (audio) <0.1%
Spurious signals (audio) -72dB
Input Impedance 47K (audio), 75 ohm (video)
Output Impedance 100 ohm (audio), 75 ohm (video)
Nominal Signal Levels 1Vp-p (video), 200mV to 2VRMS (audio)
Connections RCA
Indicators Power LED
Power 240V, 50Hz, 7W, 2-pin lead fitted
Dimensions 150x80x52 deep
Weight <1Kg
Packing Cardboard box, 0.0015m3, 1Kg
Warranty 2 years
