Cinde 2BG Video Priority Switcher/Black Generator

The CInde 2BG is an extremely useful device with wide application. Essentially a video sync detector and black raster generator, the 2BG has two external video inputs (Video and Aux), providing 4 operating modes (selectable by front panel switches):

Priority mode 1: Video output follows video input, defaults to generated black if video disappears

Priority mode 2: Video output follows video input, defaults to Aux input if video disappears

Override mode 1: Outputs AUX signal at all times

Override mode 2: Outputs generated black at all times

The generated signal is PAL black raster (no colour burst).

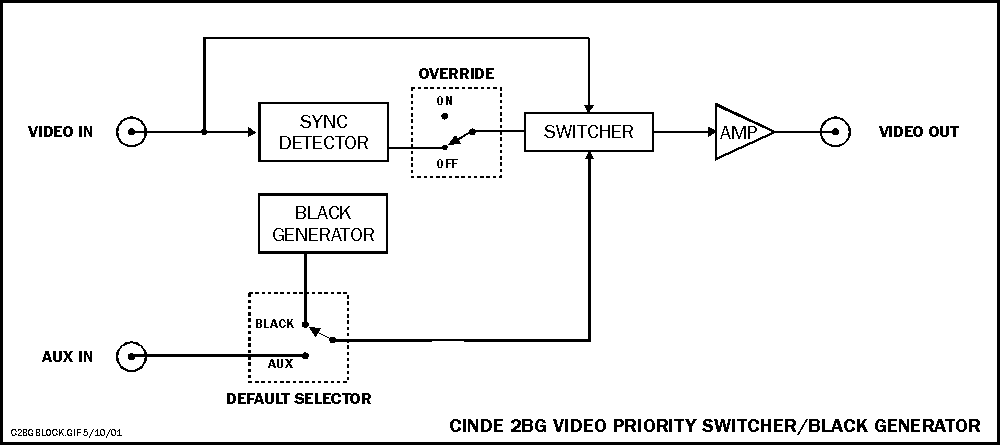

View the block diagram

Video Bandwidth DC - 9MHz -1dB
Input Impedance 75 ohm
Output Impedance 75 ohm
Nominal Signal Level 1Vp-p
Gain Unity
Connections BNC (video), IEC (power)
Indicators Mode LED's (3), Power LED
Power 240V, 50Hz, 14W, IEC lead supplied
Dimensions 300x95x44 (1RU high, rack mount brackets optional)
Weight 2Kg
Packing Cardboard box, 0.003m3, 2Kg
Warranty 2 years
