CINDE 4SP

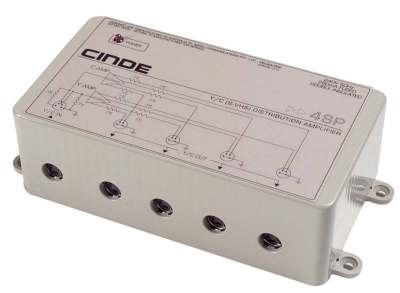

A general purpose 1-into-4 Y/C distribution amplifier for installation use. The compact ABS case has mounting flanges and block diagram on the cover. Designed with economy in mind, this is possibly the lowest cost S-VHS VDA on the market, but employs the same high integrity circuitry as our mainline products to ensure superb signal reproduction. Unity gain (terminated).Image: Perspective View (35K jpg)
| Video Bandwidth | DC - 25MHz |
| Input Impedance | 75 ohm |
| Output Impedance | 75 ohm |
| Nominal Signal Levels | 1Vp-p |
| Connections | 4-pin mini-DIN |
| Indicators | Power LED |
| Power | 240V, 50Hz, 7W, 2-pin lead fitted |
| Dimensions | 150x80x52 deep |
| Weight | <1Kg |
| Packing | Cardboard box, 0.0015m3, 1Kg |
| Warranty | 2 years |
For more info: dave@impax.com.au
