CINDE 4VP

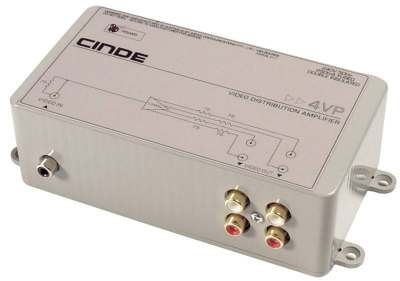

A general purpose 1-into-4 video distribution amplifier for installation use. The compact ABS case has mounting flanges and block diagram on the cover. Designed with economy in mind, this is possibly the lowest cost VDA on the market, but employs the same high integrity circuitry as our mainline products to ensure superb signal reproduction. Preset for unity gain (terminated), RCA connections, internal gain control to 2V p-p (terminated)Image: Perspective View (32K jpg)
| Video Bandwidth | DC - 25MHz |
| Input Impedance | DC - 25MHz |
| Output Impedance | 75 ohm |
| Nominal Signal Levels | 1Vp-p |
| Connections | RCA |
| Indicators | Power LED |
| Power | 240V, 50Hz, 7W, 2-pin lead fitted |
| Dimensions | 150x80x52 deep |
| Weight | <1Kg |
| Packing | Cardboard box, 0.0015m3, 1Kg |
| Warranty | 2 years |
