Cinde 88 8-in, 8-out Video/Stereo Matrix

Switcher

The CINDE 88 is a versatile audiovisual switcher suitable for any application where up to 8 video and/or audio sources are to be selected for routing to up to 8 outputs. The outputs are fully independent, making the CINDE 88 a true matrix switcher with many added features.

Selections are made by holding down an input key while pressing the output key you'd like to route the signal to. Time saving features include an ALL selector, to send the same input to all outputs simultaneously; and an OFF key, to disable all outputs.

Up to 8 configurations can be stored in the internal memory and recalled at will. The memories are backed up for approximately 100 hours with the power disconnected, as well as the current configuration, which is automatically restored when power is again applied.

An RS-232 port on the back panel accepts serial data from a control system such as AMX or Crestron, or directly from a PC, enabling powerful automated control options.

Available as a composite video switcher (Cinde 88) or a Y/C switcher (Cinde 88YC) for S-VHS applications. Video processing is compatible with Y or C signals, so the C88 may also be configured as a 4x4 Y/C (S-VHS) switcher (requires 2 key selections per operation).

Stereo audio follows video for all selections.

Images:

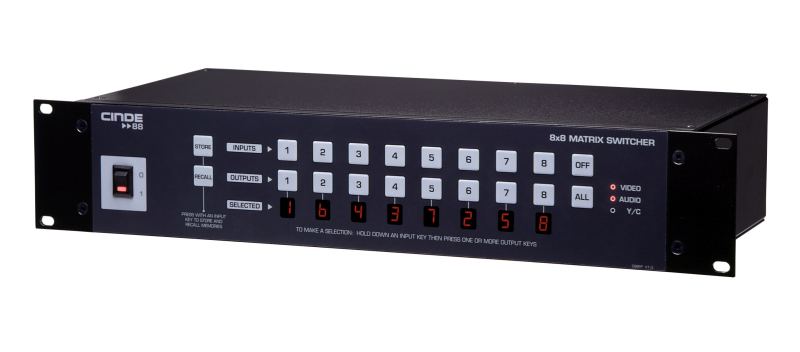

Perspective View (24K jpg)

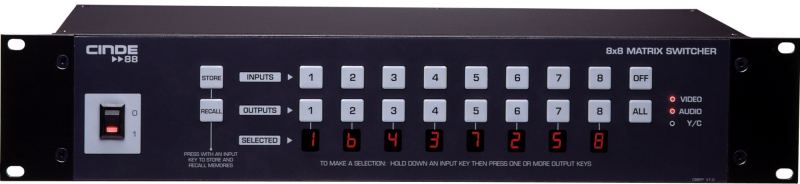

Front View (22K jpg)

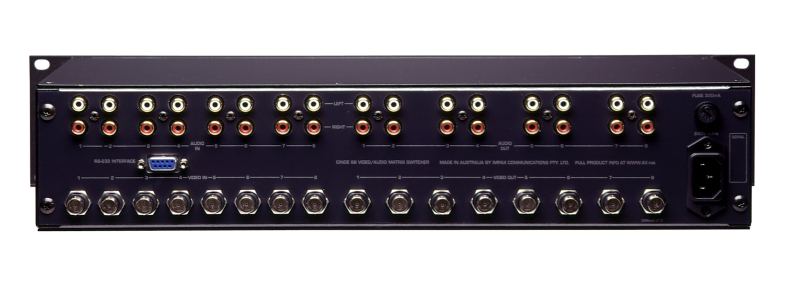

Back View (30K jpg)


Video Bandwidth DC - 9MHz -3dB
Audio Bandwidth 5Hz - 22KHz -3dB
Spurious Signals (audio) <66dB
Audio Distortion <0.1%
Video diff. gain error <0.1%
Video diff. phase error <0.15 deg.
Input Impedance 75 ohm (video), 47K (audio)
Output Impedance 75 ohm (video), 100 ohm (audio)
Nominal Signal Levels 1Vp-p (video), 200mV - 2V RMS (audio)
Connections BNC (video) Gold plated RCA (audio)
Indicators Power LED, 7-seg. displays for channel selection
Power 240V, 50Hz, 30W
Dimensions 483x210x88 (2RU steel/aluminium case)
Weight 4Kg
Packing Cardboard box, 0.020m3, 5Kg
Warranty 2 years
